Exercise Importance Sampling

Table of Contents

Introduction

Importance sampling is a very usefull method to calculate$ \mathbb E[f(x)] $ for$ x \sim p $, where$ f(x) $ lies in a region for which$ P(x) $ is very small or where getting samples from$ p $ is fairly hard or impossible. In this exercise we will show both cases and how importance sampling helps to solve these problems.

Requirements

Knowledge

To complete this exercise notebook, you should possess knowledge about the following topics.

  • Monte Carlo estimator
  • Importance sampling

The following material can help you to acquire this knowledge:

Theory

Given a function$ f(x) $ and probability distribution$ p(x) $ we calculate the expectation value as follows

\begin{equation} \mathbb E[f(x)] = \int_{x \sim p} f(x)p(x)dx. \end{equation}

Now we add a helping probability distribution$ q(x) $ and arrive at

\begin{equation} \mathbb E[f(x)] = \int_{x \sim q} \frac{f(x)p(x)}{q(x)} q(x) dx . \end{equation}

Using Monte Carlo estimation we get our desired expection value for$ f(x) $ with$ x \sim q $ over discrete values

\begin{equation} \mathbb E[f(x)] = \sum_{i=1}^n f(x_i) \frac{p(x_i)}{q(x_i)}. \end{equation}

$ \frac{p(x_i)}{q(x_i)} $ can be interpreted as importance weights.

Python Modules

import numpy as np
from matplotlib import pyplot as plt
from scipy.stats import norm
np.random.seed(42)
%matplotlib inline

Exercises

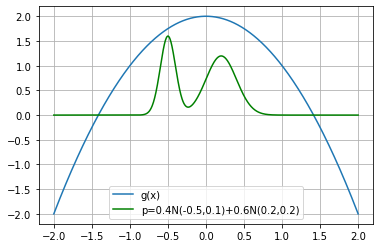

Given the function$ g(x)=-x^2 + 2 $ and the probability distribution$ p(x)= 0.4\mathcal N (-0.5,0.1) +0.6 \mathcal N(0.2,0.2) $ we want to calculate$ E[f(x)] $. The situation looks as follows

def g(x):
    gy = np.zeros(np.size(x))
    for i in np.arange(np.size(x)):
        if (x[i]<=2) and (x[i]>=-2):
            gy[i] = -x[i]**2+2
    return gy

xx = np.linspace(-2,2,1000)
plt.plot(xx,g(xx),label='g(x)')

#pdf's
mu_1,mu_2,sigma_1,sigma_2,prob_1 = -0.5,0.2,0.1,0.2,0.4
rv_1 = norm(loc = mu_1, scale = sigma_1)
rv_2 = norm(loc = mu_2, scale = sigma_2)
p_green = lambda x: prob_1 * rv_1.pdf(x) + (1-prob_1) * rv_2.pdf(x)
plt.plot(xx, p_green(xx) , "g-",label='p=0.4N(-0.5,0.1)+0.6N(0.2,0.2)')
plt.legend()
plt.grid()
plt.show()
cell-output

Task 2

Find a good approximation$ q $ of$ p $, plot all three functions and calculate$ \mathbb E_{p(x)}[g(x)] $ using importance sampling with your approximation$ q $. Compare the solution by direct sampling from$ p $ (which can be done here).

Hint: Your results for both cases should be very similar.

We use a sampler density$ q=\mathcal N(0, 0.25) $ and sample$ x_i $ from$ q $:$ x \sim q(x) $.
Then the samples$ x_i $ are weighted by$ p(x_i)/q(x_i) $.

# this is importance sampling

# sampler density q

#take samples $x \sim q$
size=100

# We sample from q
samples = np.random.normal(mu_red, sigma_red, size)

importance_weights = p_green(samples)/q_red(samples)

# Function values
g_ = g(samples)

# expectation by weighting:
np.sum(g_*importance_weights)/np.sum(importance_weights)
